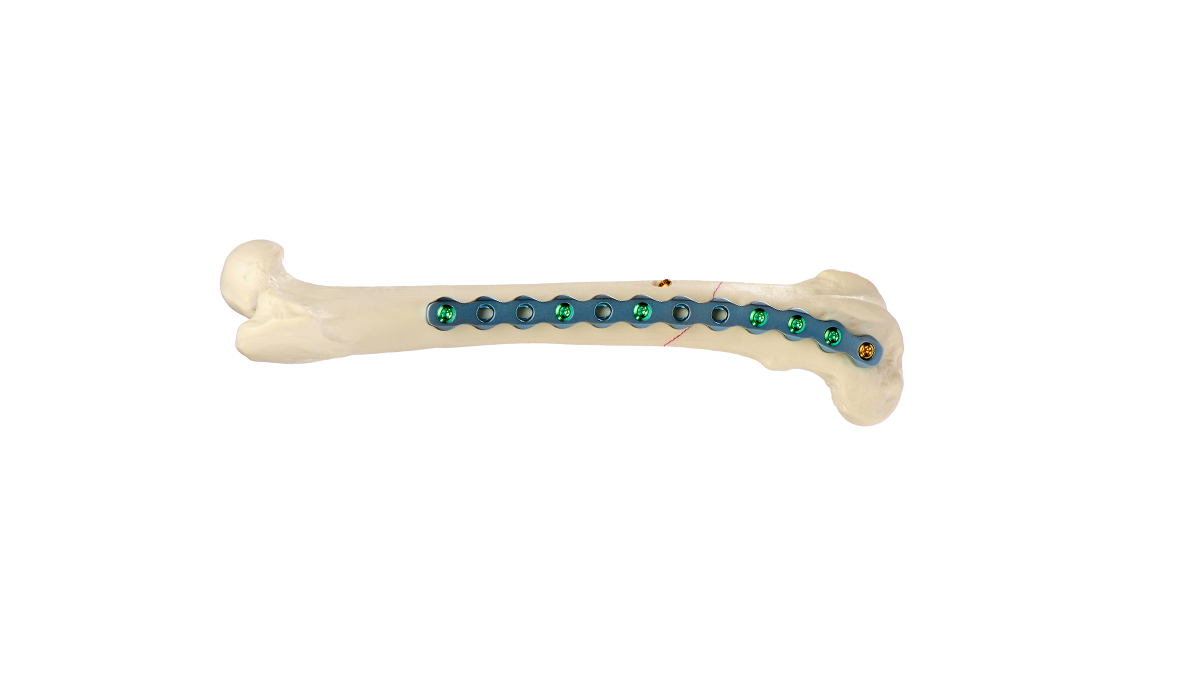

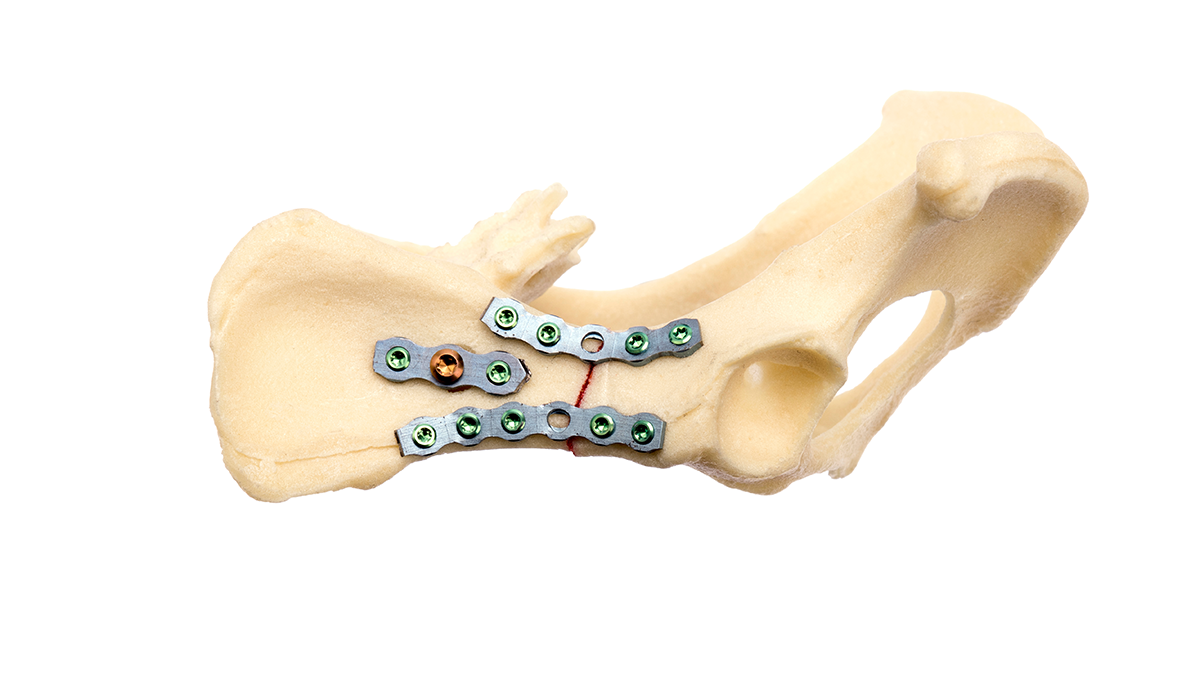

ALPS-I i mini ALPS to Advanced Locking Plate System (ALPS) używane do wszelkiego rodzaju platerowania kości.

ALPS-I to płytka blokująca pierwszej generacji oparta na ALPS^® Technologia

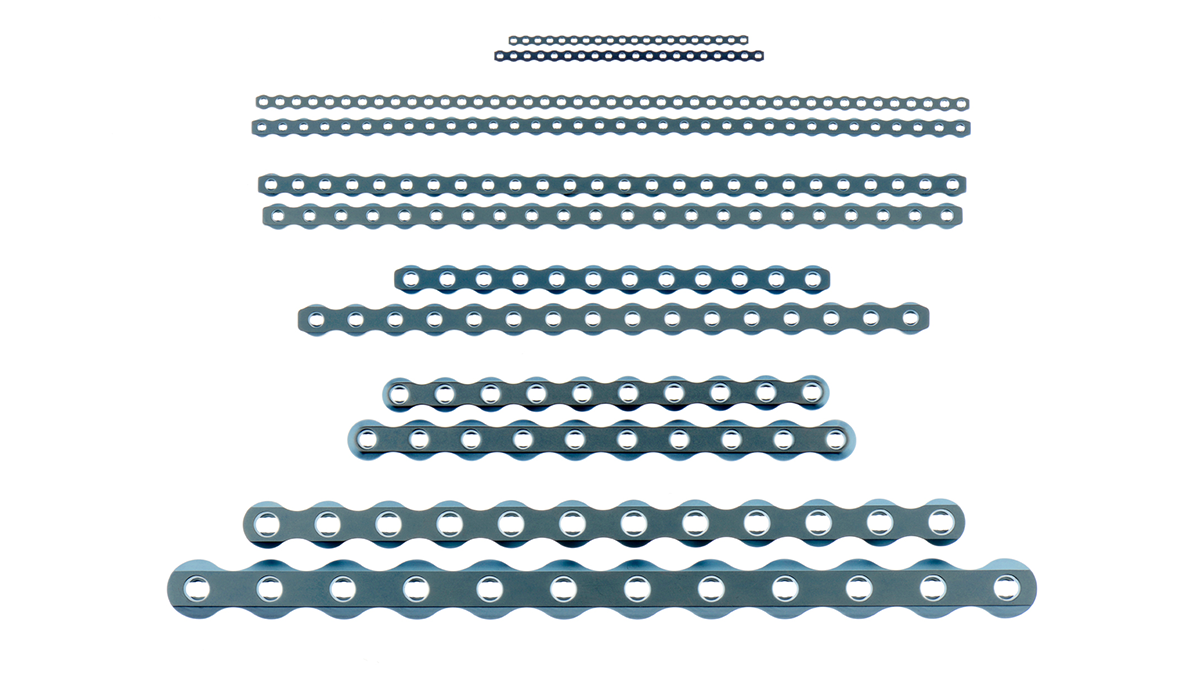

• Dostępne w różnych rozmiarach, w tym „mini” dla ras zabawkowych
• Możliwość szerokiego konturowania dzięki materiałowi tytanowemu

Obie płyty używają śrub blokujących „B” i dlatego nie są częścią ALPS^® Product Range.

Zasady

Biologiczne zasady technologii ALPS®:

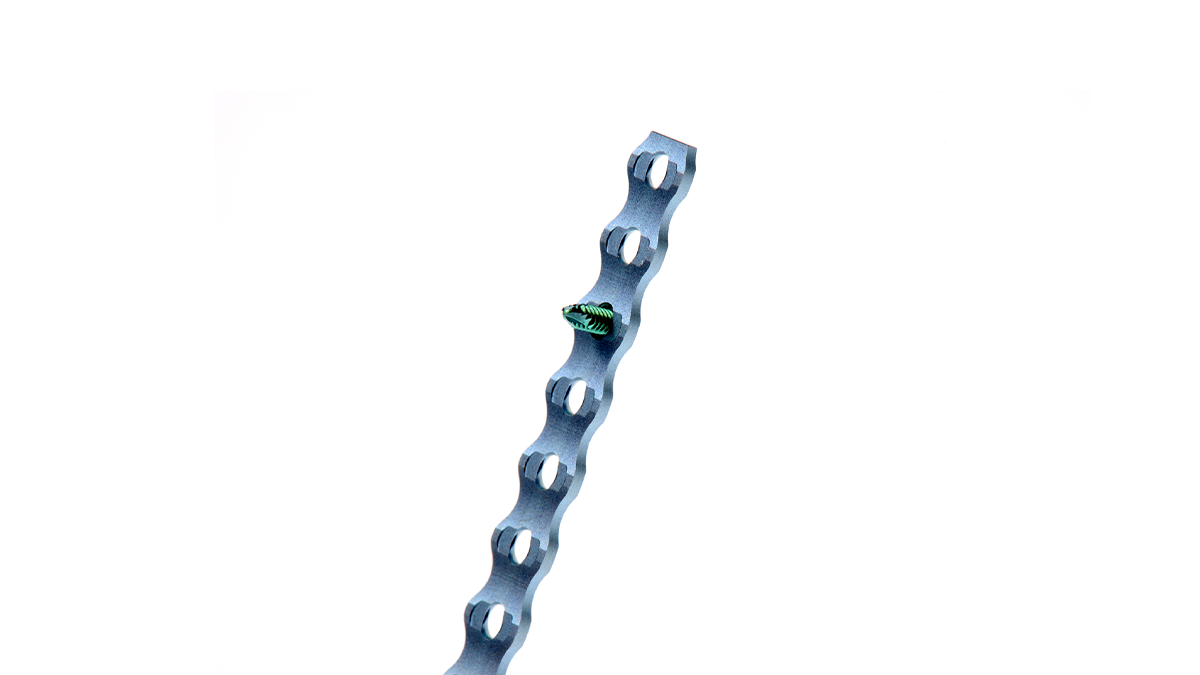

• Przyspieszone gojenie dzięki minimalny kontakt między płytką a kością

• Zastosowanie jednokorowy śruby blokujące zapobiega niepotrzebnym uszkodzeniom zdrowych kości i zachowuje ukrwienie
• Doskonała biokompatybilność i wytrzymałość dzięki tItanium

Specyfikacja techniczna

Szukasz rozmiarów, numerów artykułów lub wymaganych instrumentów lub śrub? Zapraszamy do pobrania naszego katalogu.

KATALOG

Publications

Niederhäuser SK¹, Tepic S², Weber UT¹.
Effect of screw position on single cycle to failure in bending and torsion of a locking plate–rod construct in a synthetic feline femoral gap model
American Journal of Veterinary Research. 2015 May; 76(2):402-410. doi: 10.2460/ajvr.76.5.402
¹Tierärztliches Überweisungszentrum, Small Animal Referral Practice, CH-4456 Tenniken, Switzerland.
²Kyon AG, Technoparkstrasse 1, CH-8005 Zurich, Switzerland

Nojiri A¹, Akiyoshi H, Ohashi F, Ijiri A, Sawase O, Matushita T, Takemoto M, Fujibayashi S, Nakamura T, Yamaguchi T¹
Treatment of a unicameral bone cyst in a dog using a customized titanium device
J Vet Med Sci. 2015 Jan; 77(1): 127–131. doi: 10.1292/jvms.13-0548
¹Fabre Animal Medical Center, 4–8 Minaminoguchi-cho, Kadoma, Osaka 571– 0065, Japan

Guerrero TG¹, Kalchofner K, Scherrer N, Kircher P.
The Advanced Locking Plate System (ALPS): a retrospective evaluation in 71 small animal patients.
Vet Surg. 2014 Feb;43(2):127-35. doi: 10.1111/j.1532-950X.2014.12097.x. Epub 2014 Jan 6.
¹Department for Small Animal Surgery, Vetsuisse Faculty University of Zurich, Zurich, Switzerland; Small Animal Medicine and Surgery Academic Program, School of Veterinary Medicine, St. George’s University, True Blue, Grenada, West Indies.

Pozzi A¹, Peck JN, Chao P, Choate CJ, Barousse D, Conrad B.
Mechanical evaluation of adjunctive fixation for prevention of periprosthetic femur fracture with the Zurich cementless total hip prosthesis.
Vet Surg. 2013 Jun;42(5):529-34. doi: 10.1111/j.1532-950X.2013.12018.x. Epub 2013 Jun 3.
¹Department of Small Animal Clinical Sciences, Comparative Orthopaedics and Biomechanics Laboratory, University of Florida, College of Veterinary Medicine, Gainesville, Florida, USA.

Blake CA¹, Boudrieau RJ, Torrance BS, Tacvorian EK, Cabassu JB, Gaudette GR, Kowaleski MP.
Single cycle to failure in bending of three standard and five locking plates and plate constructs.
Vet Comp Orthop Traumatol. 2011;24(6):408-17. doi: 10.3415/VCOT-11-04-0061. Epub 2011 Sep 21.
¹Department of Clinical Sciences, Tufts University, North Grafton, MA 01536, USA.

Cabassu JB¹, Kowaleski MP, Skorinko JK, Blake CA, Gaudette GR, Boudrieau RJ.
Single cycle to failure in torsion of three standard and five locking plate constructs.
Vet Comp Orthop Traumatol. 2011;24(6):418-25. doi: 10.3415/VCOT-11-04-0050. Epub 2011 Sep 21.
¹Department of Clinical Sciences, Tufts University, North Grafton, MA 01536, USA.

Inauen R¹, Koch D, Bass M.
Arthrodesis of the tarsometatarsal joints in a cat with a two hole advanced locking plate system.
Vet Comp Orthop Traumatol. 2009;22(2):166-9.
¹Koch&Bass Referal Practice for Small Animal Surgery, Basadingerstrasse 26, 8253 Diessenhofen, Switzerland. rinauen@kochbass.ch

Schlegel U¹, Perren SM.
Surgical aspects of infection involving osteosynthesis implants: implant design and resistance to local infection.
Injury. 2006 May;37 Suppl 2:S67-73.
¹AO Research Institute, AO Foundation, Davos, Switzerland. urs.schlegel@aofoundation.org

Perren SM.
Backgrounds of the technology of internal fixators.
Injury. 2003 Nov;34 Suppl 2:B1-3.
AO Research Institute, Davos, Switzerland.

Perren SM.
Evolution of the internal fixation of long bone fractures. The scientific basis of biological internal fixation: choosing a new balance between stability and biology.
J Bone Joint Surg Br. 2002 Nov;84(8):1093-110.
AO Research and Development Institutes, Davos, Switzerland.

Eijer H¹, Hauke C, Arens S, Printzen G, Schlegel U, Perren SM.
PC-Fix and local infection resistance–influence of implant design on postoperative infection development, clinical and experimental results.
Injury. 2001 Sep;32 Suppl 2:B38-43.
¹Department of Orthopaedic Surgery, University Hospital Amsterdam, The Netherlands. heijer@go.com

Hertel R¹, Eijer H, Meisser A, Hauke C, Perren SM.
Biomechanical and biological considerations relating to the clinical use of the Point Contact-Fixator–evaluation of the device handling test in the treatment of diaphyseal fractures of the radius and/or ulna.
Injury. 2001 Sep;32 Suppl 2:B10-4.
¹Department of Orthopaedic Surgery, Inselspitel, University Berne, Switzerland.

Haas N¹, Hauke C, Schütz M, Kääb M, Perren SM.
Treatment of diaphyseal fractures of the forearm using the Point Contact Fixator (PC-Fix): results of 387 fractures of a prospective multicentric study (PC-Fix II).
Injury. 2001 Sep;32 Suppl 2:B51-62.
¹Clinic for Trauma and Reconstructive Surgery, Charité, Humboldt University, Berlin, Germany.

Arens S¹, Eijer H, Schlegel U, Printzen G, Perren SM, Hansis M.
Influence of the design for fixation implants on local infection: experimental study of dynamic compression plates versus point contact fixators in rabbits.
J Orthop Trauma. 1999 Sep-Oct;13(7):470-6.
¹AO ASIF Research Institute, Davos, Switzerland.

Fernández Dell’Oca AA¹, Tepic S, Frigg R, Meisser A, Haas N, Perren SM.
Treating forearm fractures using an internal fixator: a prospective study.
Clin Orthop Relat Res. 2001 Aug;(389):196-205.
¹British Hospital, Montevideo, Uruguay.

Hauke C¹, Meisser A, Perren SM.
Methodology of clinical trials focusing on the PC-Fix clinical trials.
Injury. 2001 Sep;32 Suppl 2:B26-37.
¹AO ASIF Development Clinical Investigation, Davos-Platz, Switzerland. Christian.Hauke@hcuge.ch

Tepic S¹, Remiger AR, Morikawa K, Predieri M, Perren SM.
Strength recovery in fractured sheep tibia treated with a plate or an internal fixator: an experimental study with a two-year follow-up.
J Orthop Trauma. 1997 Jan;11(1):14-23.
¹Research Institute, AO/ASIF Foundation, Davos, Switzerland.

Arens S¹, Hansis M, Schlegel U, Eijer H, Printzen G, Ziegler WJ, Perren SM.
Infection after open reduction and internal fixation with dynamic compression plates–clinical and experimental data.
Injury. 1996;27 Suppl 3:SC27-33.
¹AO/ASIF Research Institute, Davos, Switzerland.

Ungersböck A¹, Pohler OE, Perren SM.
Evaluation of soft tissue reactions at the interface of titanium limited contact dynamic compression plate implants with different surface treatments: an experimental sheep study.
Biomaterials. 1996 Apr;17(8):797-806.
¹Department of Orthopaedic Surgery, University of Bern, Switzerland.


Miclau T¹, Remiger A, Tepic S, Lindsey R, McIff T.
A mechanical comparison of the dynamic compression plate, limited contact-dynamic compression plate, and point contact fixator.
J Orthop Trauma. 1995 Feb;9(1):17-22.
¹Department of Orthopedic Surgery, Baylor College of Medicine, Houston, TX 77030, USA.

Ungersböck A¹, Pohler O, Perren SM.
Evaluation of the soft tissue interface at titanium implants with different surface treatments: experimental study on rabbits.
Biomed Mater Eng. 1994;4(4):317-25.
¹AO/ASIF Research Institute Davos, Switzerland.
